PEM® FASTENER
PDF page 1 · PEM Fastener Catalogue
CATALOG

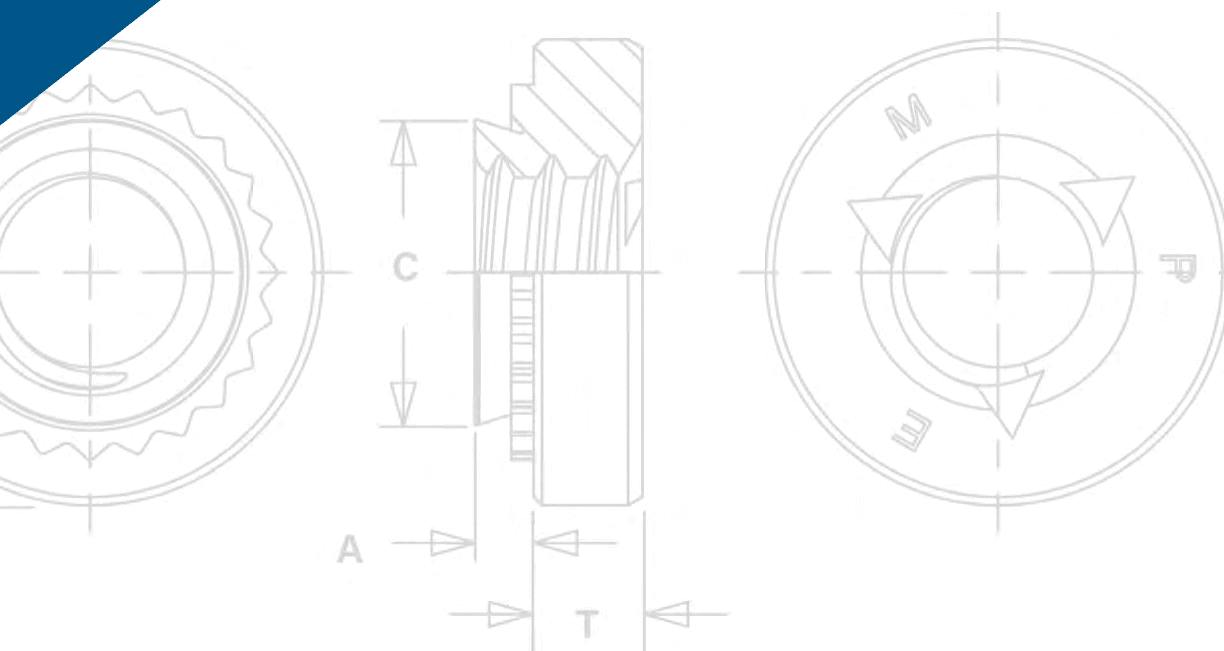

Figure description:
The image is a technical schematic of a mechanical component, likely a specialized fastener or dial.
- Three Viewpoints: Includes a front view with a serrated edge, a side cross-sectional view, and a back view with markings.
- Dimensional Labels:
- C: Indicates an internal or step diameter.
- A: Represents a specific width or offset section.
- T: Denotes the thickness of the main body.
- Key Markings: The circular back face features the letters M, P, and E positioned around a center point with three clockwise directional arrows.
- Structural Features: Shows internal threading and a stepped, cylindrical profile.
| Quick Product Locator | Pg 3 |
| Floating Self-Clinching Fasteners | Pg 11 |
| Self-Clinching Blind Fasteners | Pg 15 |
| Concealed-Head Self-Clinching Studs and Standoffs | Pg 19 |
| Self-Clinching Nuts | Pg 25 |
| PEMSERT® Self-Clinching Fasteners | Pg 41 |
| Miniature Self-Clinching Fasteners | Pg 45 |
| Self-Clinching Studs and Pins | Pg 51 |
| Fasteners for Use with P.C. Boards | Pg 83 |
| Self-Locking Fasteners | Pg 104 |
| microPEM® Fasteners | Pg 127 |
| Captive Panel Screws | Pg 145 |
| R'ANGLE® Right Angle Fasteners | Pg 188 |
| SPOTFAST® Fasteners | Pg 196 |
| Self-Clinching KEYHOLE® Fasteners | Pg 204 |
| Self-Clinching Standoffs | Pg 216 |
| Fasteners for Use in Stainless Steel Sheets | Pg 228 |
| SNAP-TOP® Standoffs | Pg 252 |
| Self-Clinching TY-D® Cable Tie-Mounts and Hooks | Pg 259 |
| VARIMOUNT® Bonding Fasteners | Pg 265 |
| Self-Locating Projection Weld Nuts | Pg 271 |
PEM® brand fasteners utilize self-clinching, broaching, flaring, surface mount, bonding or weld technology to provide strong, reusable, and permanent threads and mounting points in thin sheet metal, P.C. board or other rigid materials.

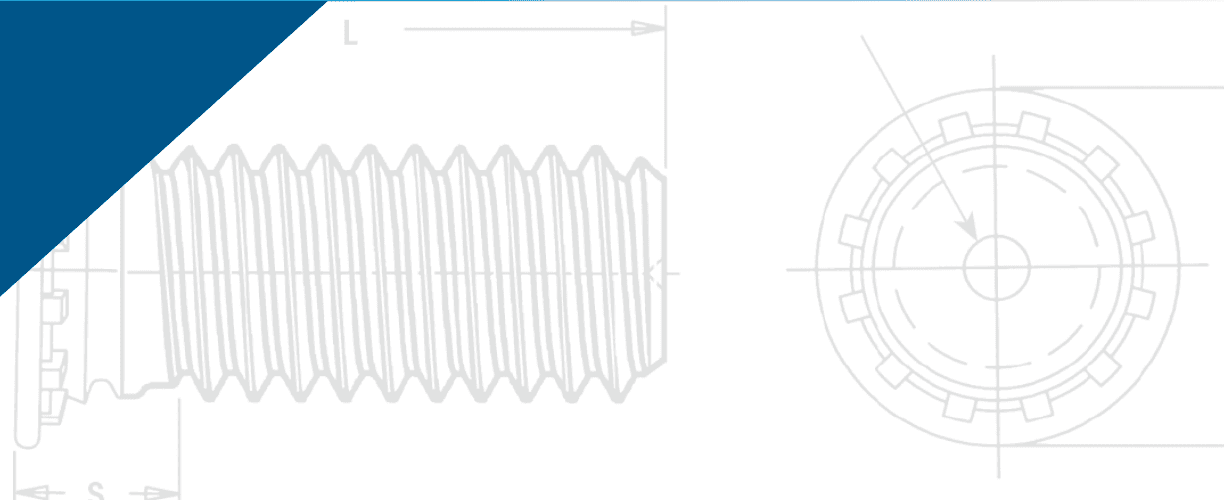

Figure description:
Technical engineering drawing of a threaded fastener:
- Side View: Shows a threaded shaft with dimensions labeled L (overall length and S (head/shoulder length.))
- End View: Circular profile showing a splined or serrated head design around a central hole.
- Visual Style: Light grey line art on a white background with a dark blue diagonal element in the top left.
To help you identify genuine PEM® brand fasteners, most are marked by one of our trademarks or identifiers. Genuine PEM fasteners can only be purchased from one of our authorized worldwide distributors. For a complete listing of these distributors, check our web site: www.pemnet.com.
