ALA™ Floating Self-Clinching Fasteners
Part Number Designation
PDF page 12 · PEM Fastener Catalogue
| Part Number | Type | Retainer Material Code | Thread Size Code | Shank Code | Finish Code |
|---|---|---|---|---|---|
| AC–440–1 | A | C | 440 | 1 | |
| AS–440–1ZI | A | S | 440 | 1 | ZI |
| A4–440–1 | A | 4 | 440 | 1 | |
| LAC–440–1MD | LA | C | 440 | 1 | MD |
| LAS–440–1MD | LA | S | 440 | 1 | MD |
| LA4–440–1MD | LA | 4 | 440 | 1 | MD |

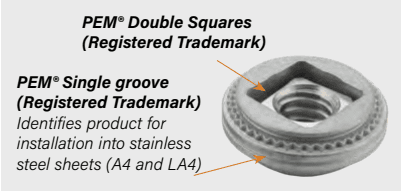

PEM® Double Squares (Registered Trademark). PEM® Single groove (Registered Trademark) — identifies product for installation into stainless steel sheets (A4 and LA4).
