B™ Self-Clinching Blind Fasteners

Dimensions

PDF page 17 · PEM Fastener Catalogue

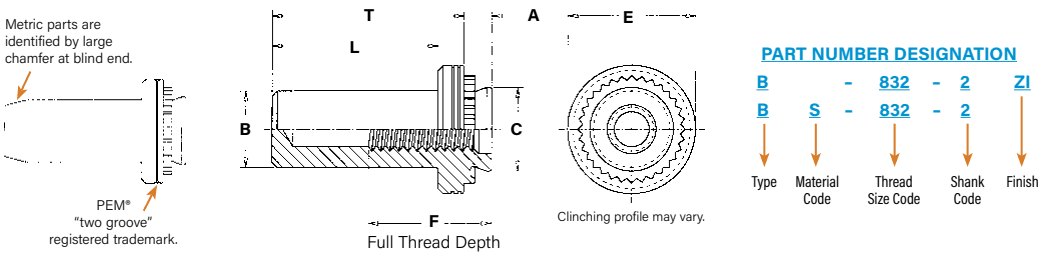

The provided image contains technical drawings and part number information for PEM fasteners. Technical Drawing Details Metric Identification: Metric parts are identified by a large chamfer at the blind end. Trademark: PEM® "two groove" registered trademark is located near the head of the fastener. Dimensional Labels: L: Overall length of the fastener. T: Threaded length from head to end. F: Full thread depth. A: Height of the head. B: Diameter of the body/stud. C: Diameter of the clinching feature. E: Overall diameter of the head. Note: Clinching profile may vary.

Drawing callouts: Metric parts are identified by large chamfer at blind end. PEM® "two groove" registered trademark. Dimensions T, L, A, E, B, C; F = Full Thread Depth. Clinching profile may vary.
