B™ Self-Clinching Blind Fasteners

B™ Self-Clinching Blind Fasteners

PDF page 15 · PEM Fastener Catalogue

PEM® self-clinching blind fasteners are used in applications requiring closed thread ends.

Entities: Self-clinching blind fasteners. Key Features: Internally threaded. Serrated flange base for self-clinching installation. Closed-end (blind design to protect threads from debris or provide a seal. Metallic construction.

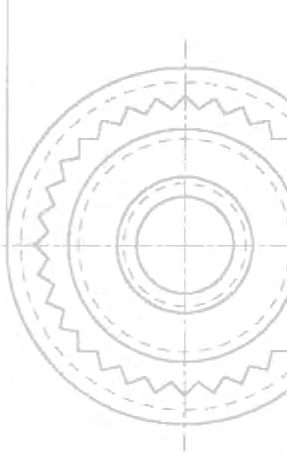

This image is a technical engineering drawing of a circular mechanical component, possibly a serrated flange or gear. It features several concentric circles, including a central bore, an inner ring with a jagged/serrated pattern, and an outer boundary. Horizontal and vertical center lines indicate radial symmetry. Several dashed circular lines likely represent reference diameters or pitch circles.

Performance Data (1)(2)
